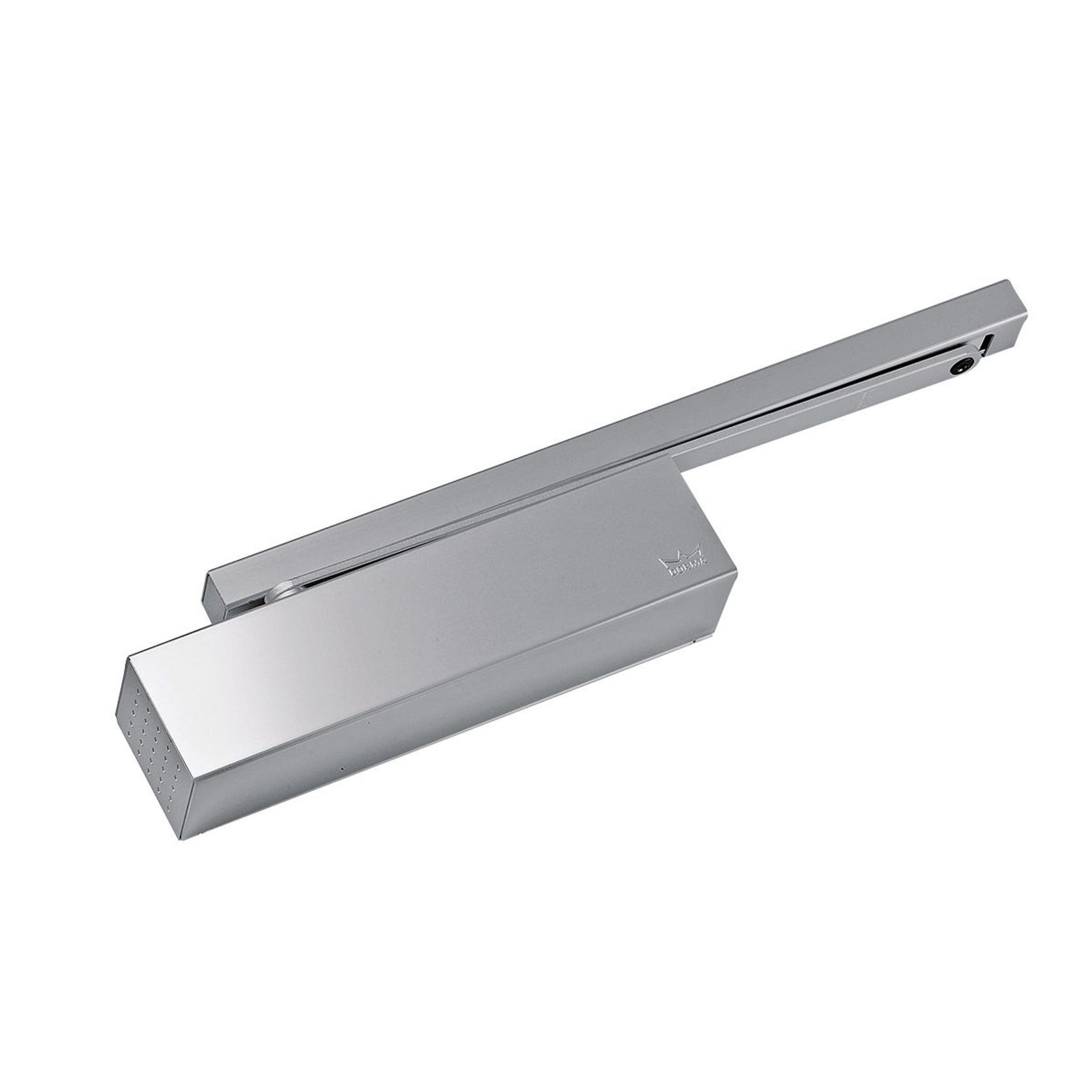

Dorma TS93G EN1-5 Door Closer Push Side Silver Fire Rated 43100501

By Keeler Hardware
Website

Dorma Door Closer
43100501

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Details
  • Category
    Door Closers
  • Range
    Dorma
Specifications

Includes:

  • 1 x Dorma TS93G EN1-5 Door Closer Push Side Silver
  • 1 x Dorma 93GN 64010001 Slide Arm and Channel Silver

Features:

  • Special model for push-side door leaf fixing/pull-side transom fixing
  • Suitable for fire and smoke check doors where the cushioned limit stay is also used
  • Suitable for single and double doors installation up to 1250mm (W)
  • Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
  • Closing force is adjustable with a screw and closing speed adjustable with a valve
  • Latching speed, backcheck and delayed action is also adjustable at the valve
  • Has slide channel arm assembly

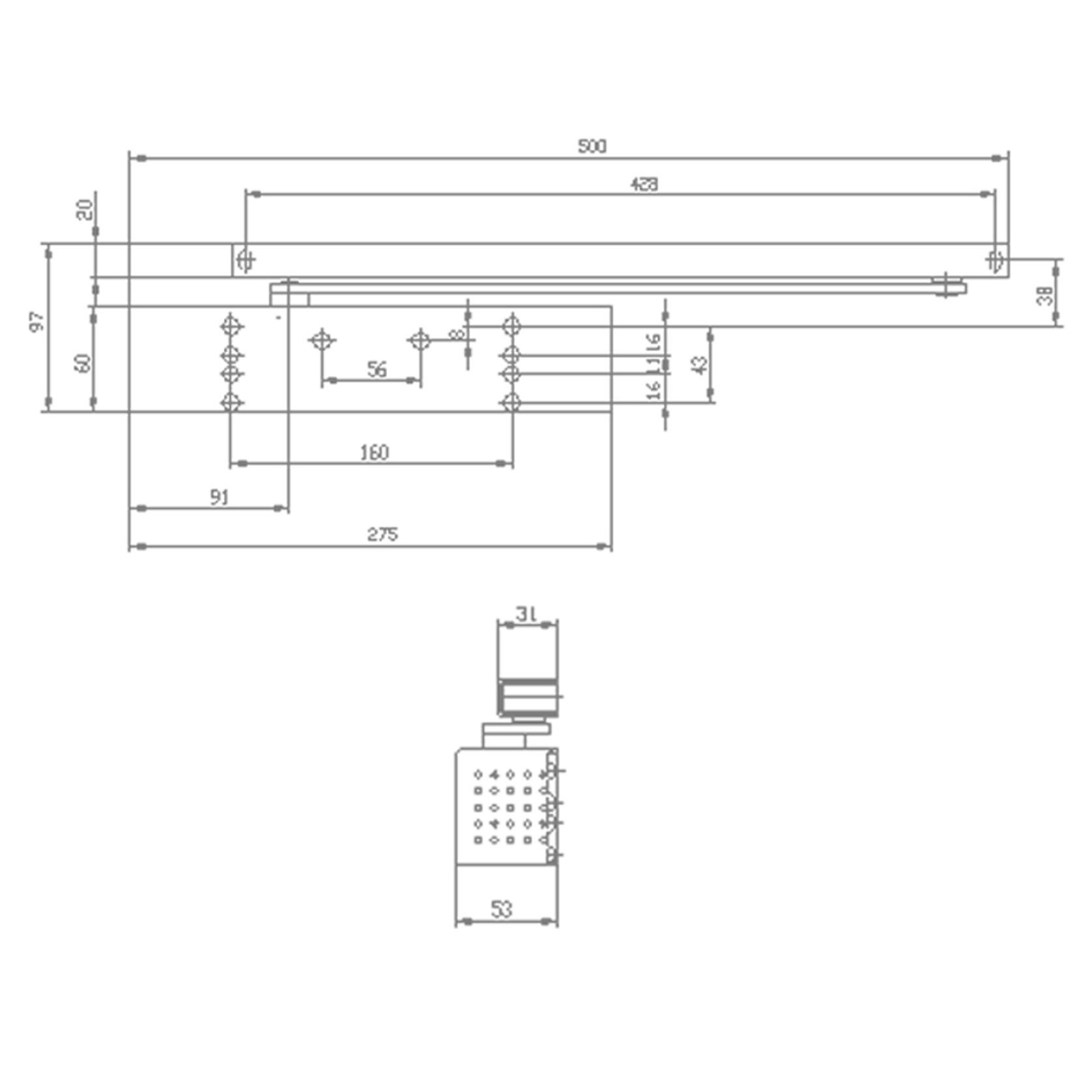

Specifications:

  • Length: 275mm
  • Width: 53mm
  • Height: 60mm
  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Has Backcheck: Yes
  • Has Delay Action: Yes
  • Has Hold Open: No
  • Has Slide Arm: Yes
  • Spring Strength: EN1-5
  • Suits Push Side Of Door: Yes
  • Fire Rated: Yes
  • Finish: Silver

Note: Angle brackets are sold separately.
