eHaus Euro - Passive House Plus - non Certified

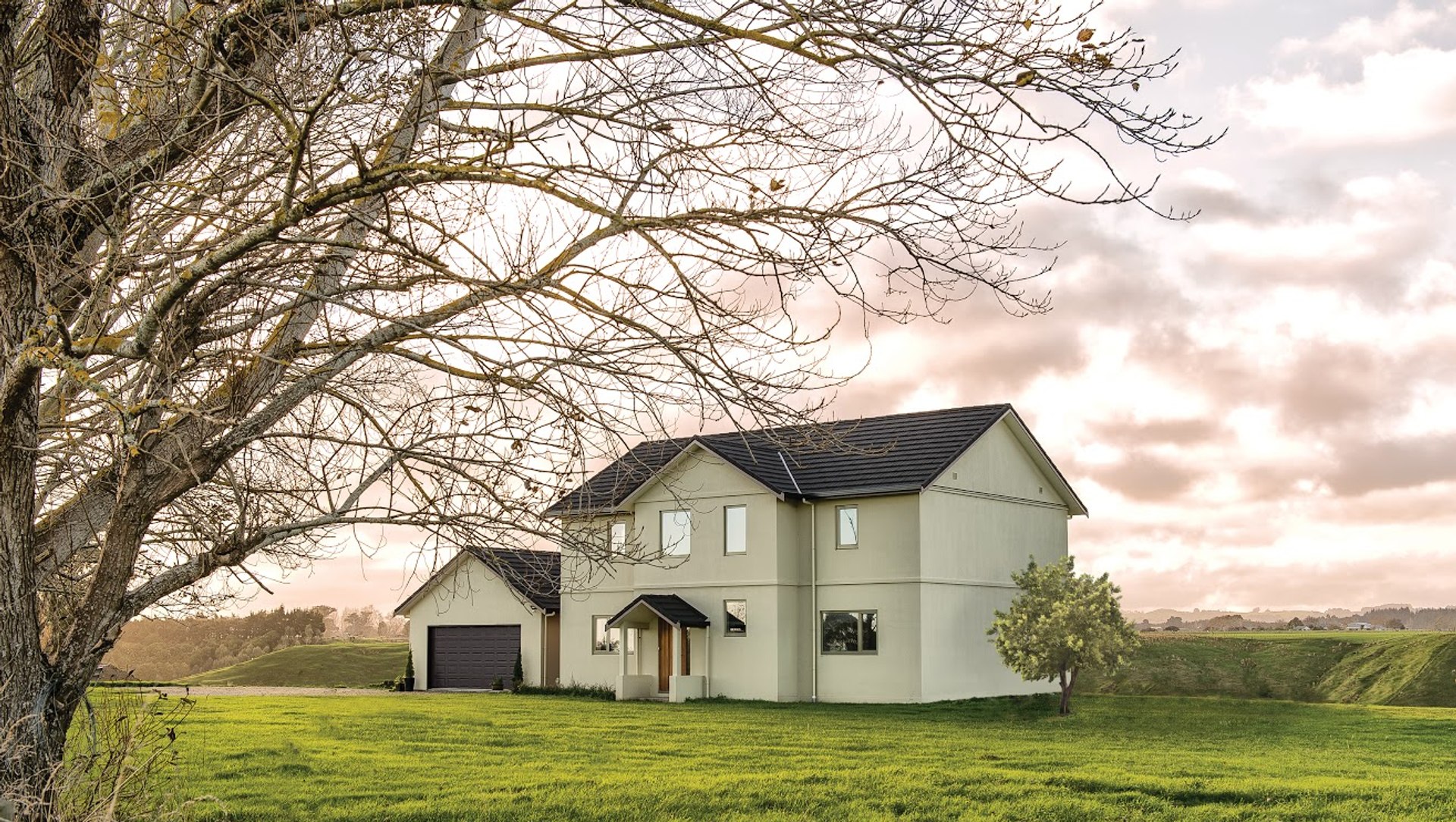

Designed by local Architect Duncan Sinclair of Black Pine this eHaus is set in the rural landscape north of Whanganui. This two level family 3 bedroom home was sited to capture the magnificent views of the mountains through the huge picture window in the lounge.
This retired couple love the all year round comfort and warmth the home provides. The 5KW photovoltaic solar panels and solar thermal hot water systems means the home generates more energy than they can consume, providing huge savings.
Design Components
Floor: Fully insulated concrete pad with a U-value of 0.246 W/(m²K)
Wall: ecoBlock ICF wall U-value of 0.261 W/(m²K)
Roof: Double layer of fibreglass insulation U-value of 0.171 W/(m²K)
Window Joinery Frame: Eco Windows German Wood Alu Uf value 1.37 W/(m²K)
Glazing: Triple Glazed Low E Argon Ug value 0.60 W/(m²K) G Value 52%
Ventilation: Zehnder Comfo Air 350 MHRV
Hot Water: Solar Thermal 30 flat plate system with internal 300 litre water storage. System features automatic drain of panel in hot and cold conditions.
Heating/Cooling: 3.2kW Heat-pump and an inline direct electric heating element in ventilation system controlled by comfo ease panel.
Ecological features: 23,000 litre water harvesting system. Natural flow black and grey water gravity feed treatment system with composting.
Performance Specifications
Heating Demand: 8 kWh/m²/yr
Heating Load: 7 W/m²
Cooling Load: 2W/m²
Frequency of Overheating: 0% year over 25°C
TFA: 187.14 m²
Form Factor: 2.74
Air Leakage@50Pa: 0.56 ACH
Primary energy requirement: 75 kWh/m²/yr
