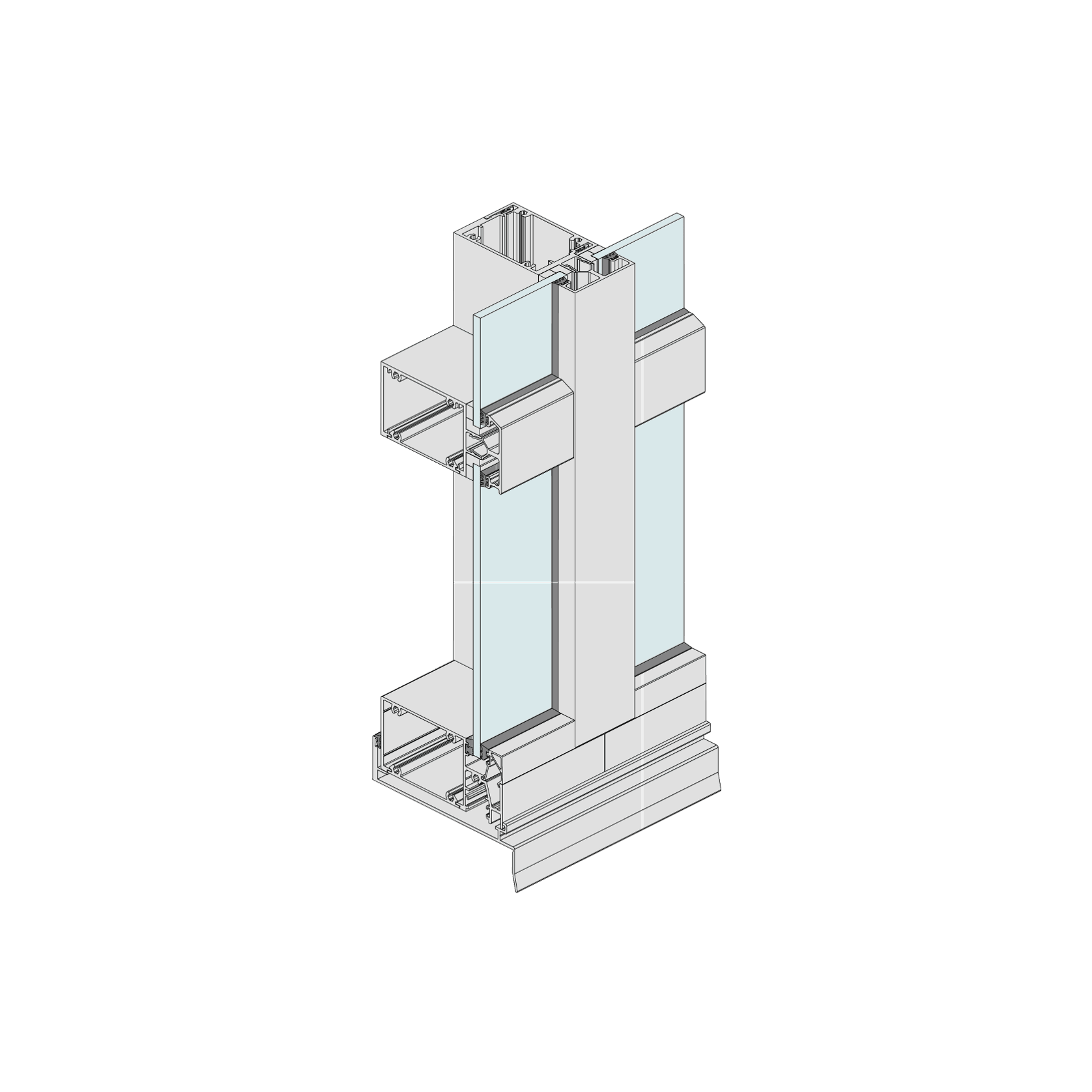

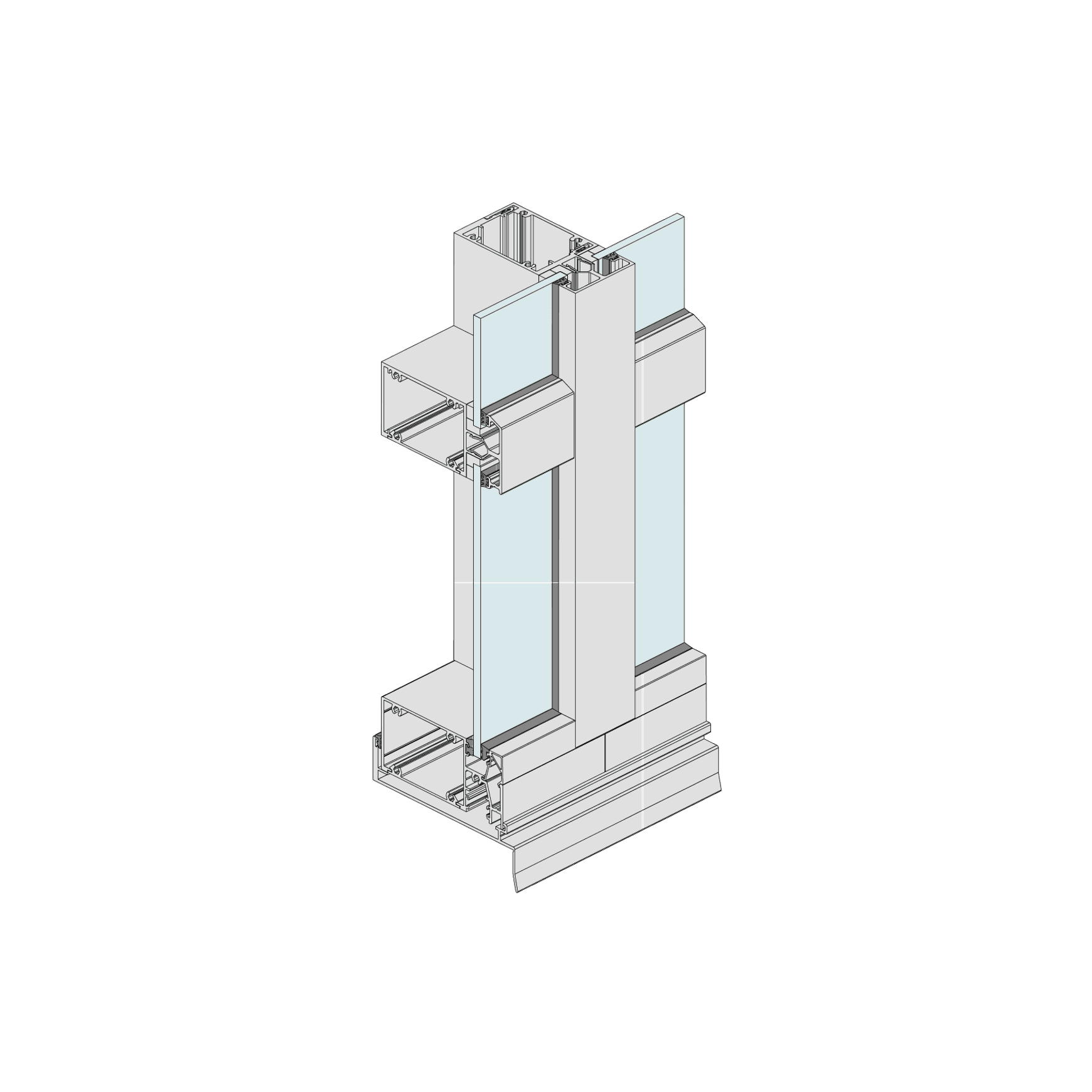

Elevate | Series 407 | 102mm Framing
Series 407 FaceLINE™ shopfront framing system has been designed to complement Series 406 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors.
- CategoryWall Framing
- RangeElevate | Commercial Framing
- Glass close to the external face reduces the potential of dust build-up on transom ledges.
- Interlocking split mullions to accommodate expansion and contraction.
- The 102 x 50mm framing system has a variety of transom and mullion alternatives.
- Will accept glass from 6 to 10.38mm thickness.
- Full perimeter frame allows this system to be fitted into sub-head, sub-sill and sub-jambs if required.
- Four snap-on cover options.
- Designed for one- or two-storey shopfronts, vertical should not exceed the stock length. This is not a curtain wall system.
- Maximum Panel Height* Various
- Maximum Panel Width* Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.33 - 0.73
- Uw Range 4.3 - 6.1
Other products
in this range
About the
Seller
Architectural Window Systems (AWS) is one of Australia’s leading suppliers of aluminium window and door systems. Established in 1995, AWS prides itself on innovative systems, dedicated support and solutions focused design.
Our two main product brands are Vantage® Windows & Doors and Elevate™ Aluminium Systems. They are designed, tested and made for Australian conditions.
Vantage® Windows & Doors is the preferred choice for residential architects and building designers. Our products feature in renovations, custom homes and luxury high end homes. Selected for style, customisation, comfort and energy efficient performance.
Vantage® Windows & Doors includes four ranges:
- Residential Series
- ComfortEDGE™ Series
- Designer Series
- Designer ThermalHEART™ Series
Elevate™ Aluminium Systems is the preferred choice for architects designing for residential and commercial projects. Our products feature in high end homes, aged care, educational, mid-rise and façade projects.
Elevate™ Aluminium Systems includes five ranges:
- Commercial Framing Series
- Commercial ThermalHEART™ Series
- Commercial Series
- Architectural Series
- Curtain Wall Systems
They are durable, customised and able to solve a wide range of design challenges.
Our products are manufactured and supplied by over 200 independent fabricators across Australia. These are craftsmen in the industry with attention to detail, who care about your project.
