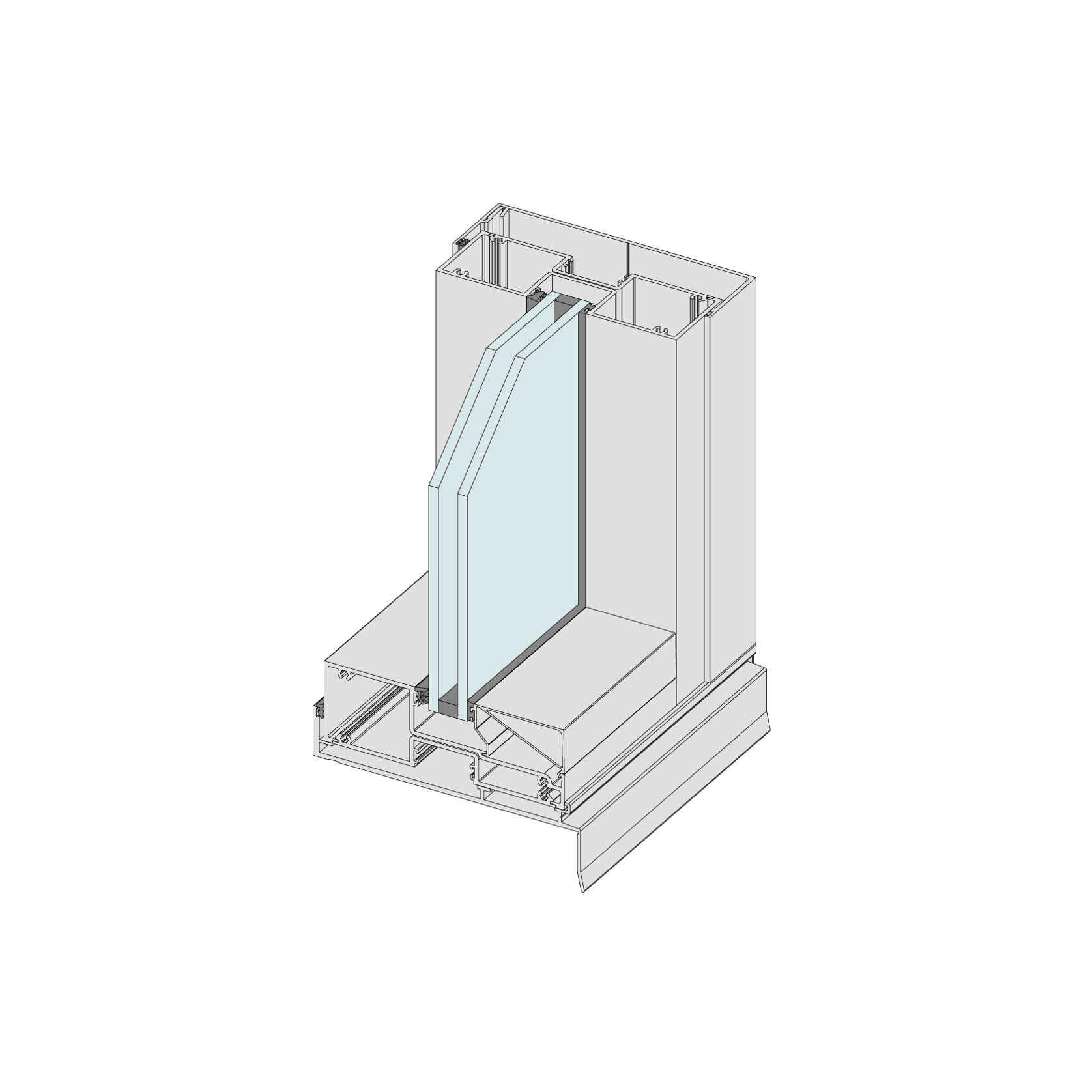

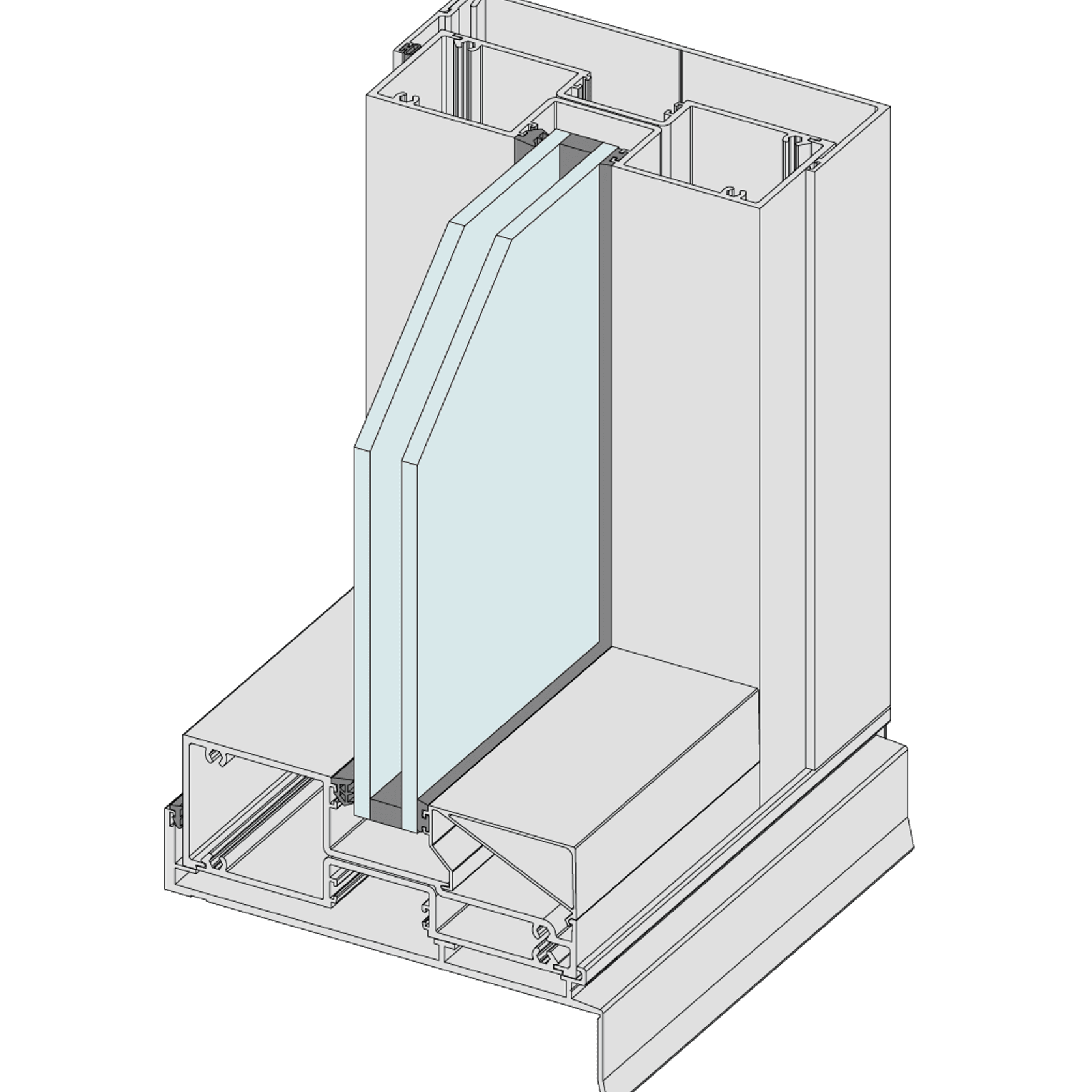

Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
Product Details
- Product
- Elevate | Series 624 | Double Glazed 150mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Woods BagotArchitects
Brcar Morony ArchitectureArchitects
Studio SnellArchitects
Taylor KnightsArchitects
Robert Harwood ArchitectsArchitects
BANHAM ArchitectsArchitects
Create ArchitectureArchitects
Hindley & CoArchitects
Freckle ArchitectureArchitects
RobertsonCollectifArchitects
Chan ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Kister ArchitectsArchitects
Shane Marsh ArchitectArchitects
AO Design StudioArchitects
ArdelArchitects
DX ArchitectsArchitects
J Mammone ArchitectureArchitects
APC BuildBuilders
Cunningham Custom HomesDesign & Build
Seidler GroupDesign & Build
Reitsma & AssociatesBuilding Designers
Venn ConstructionsBuilders
Nadine K DesignBuilding Designers
Gold Leaf ConstructionsBuilders
Alberse HomesBuilders
Millboard DeckingManufacturers and Suppliers
Design by ADBuilding Designers
Design by JonesInterior Designers
Studio UrboBuilding Designers
Walters MacriPhotographers
Centor®Manufacturers and Suppliers
Alex Urena Design StudioBuilding Designers
KarmatectureBuilding Designers
Glow DesignBuilding Designers
Escea Fireplace CompanyManufacturers and Suppliers
Distinct InnovationsDesign & Build
Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
- Specs
- Compatible with a large range of other Elevate™ framing systems, including sliding doors.
- Snap together and interlocking expansion mullions.
- Matching 50mm thick hinged, pivot or sliding door; each designed to accept 24mm thick double glazing and a large variety of industry standard hardware.
- Two fully beaded midrail sizes to choose from (125mm and 200mm deep).
- Concealed overhead transom also designed to accept 24mm IGUs.
- We can insert awning sashes into the framing - if required. These sashes will also accept 24mm IGUs
- Maximum panel height - Various
- Maximum panel width - Various
- Maximum glass thickness ≤ 28mm.
- SHGC range - 0.22 - 0.65
- UW range - 2.9 - 3.8
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
Elevate | Series 624 | Double Glazed 150mm Framing
The Elevate | Series 624 | Double Glazed 150mm Framing is supplied by Architectural Window Systems. It is also on their website, and you can browse every product Architectural Window Systems lists on ArchiPro.
Architectural Window Systems does not publish a price for the Elevate | Series 624 | Double Glazed 150mm Framing on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Elevate | Commercial Framing range from Architectural Window Systems, where you can see every product in the range together.

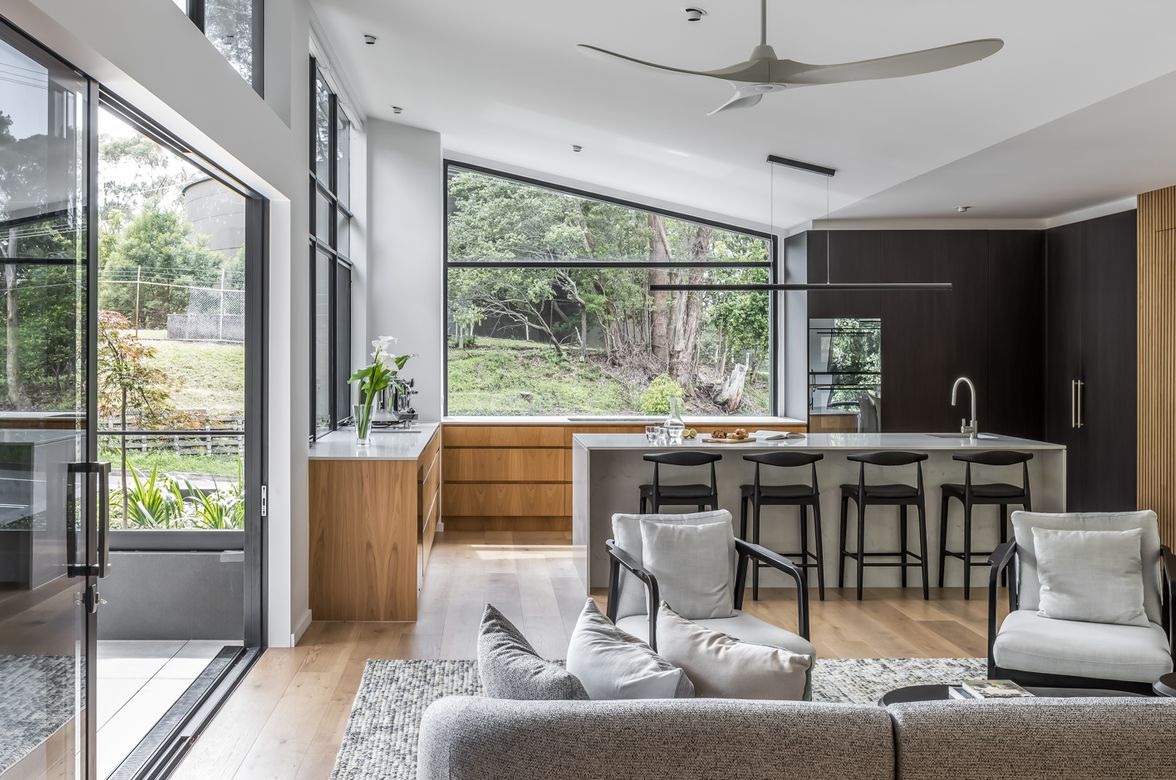

Yes. It has been specified in projects on ArchiPro, including Tally Springs by Architectural Window Systems, Q House by Architectural Window Systems and Mountain House by Architectural Window Systems. See how it was used in a finished space.
