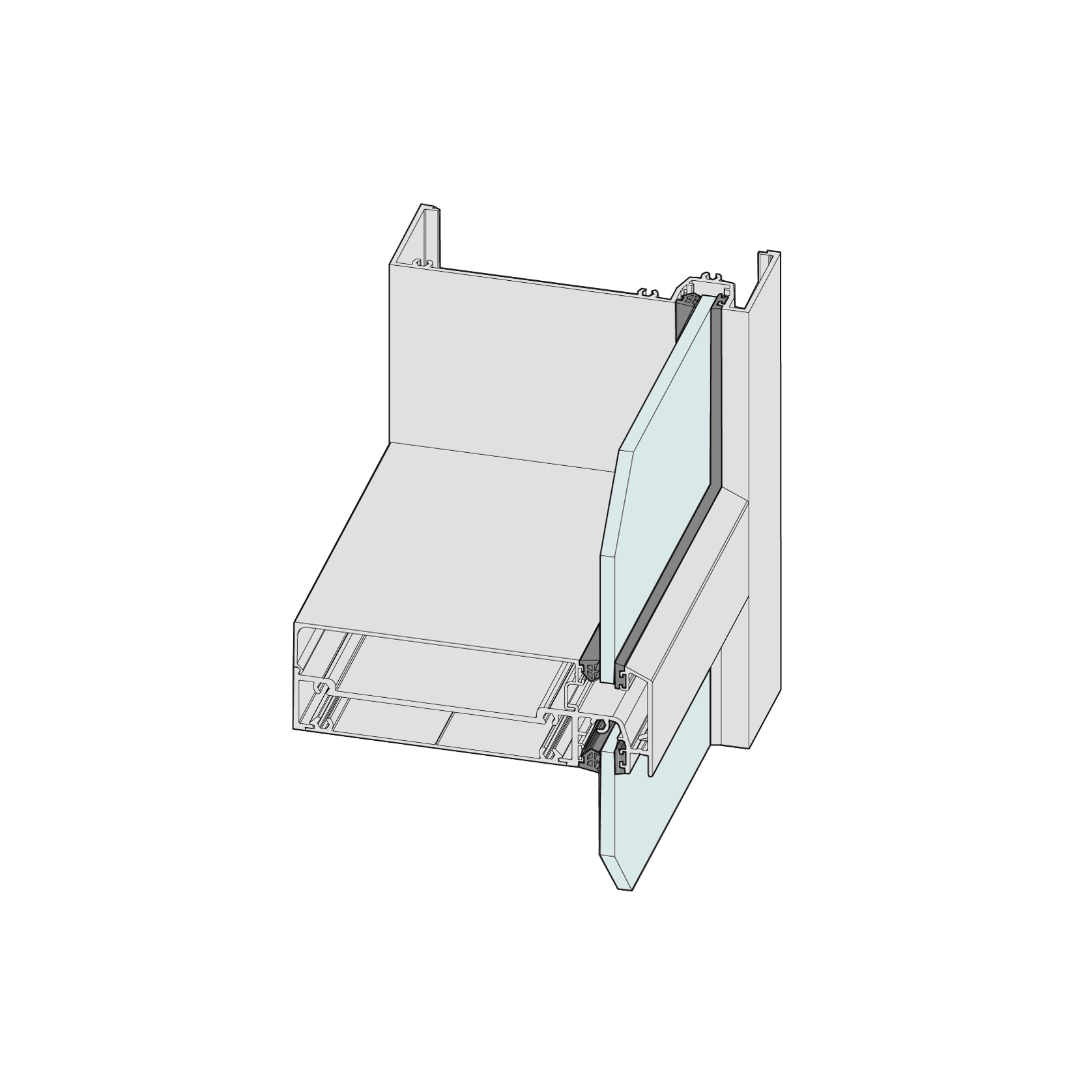

Elevate | Series 606 | Single Glazed 150mm Framing
Series 606 FrontGLAZE™ is designed to complement Series 406 FrontGLAZE™, Series 702 and 704 SlideMASTER™ sliding doors.
- CategoryWall Framing
- RangeElevate | Commercial Framing
- High water resistance can be achieved, the design has been successfully tested at 600Pa water resistance.
- Variety of transom and mullion alternatives.
- Industry standard glazing pocket as per Series 406 FrontGLAZE™ and Series 400 CentreGLAZE™, incorporates a truly captive glazing wedge.
- Two mullion designs allow frames to be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing.
- Two midrail sizes (50mm and 125mm).
- A large variety of glazing and beading options.
- Built-in drip groove on transoms to encourage water to leave framing face.
- Sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.
- Doors can be fitted with matching 25º splayed horizontal beads.
- Will accept awning/casement sash inlays.
- Maximum Panel Height *Various
- Maximum Panel Width *Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.33 - 0.74
- Uw Range 4.5 - 6.4
