Elevate | Series 406 | Single Glazed 102mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 391.1K profile views
- 36 saves
Series 406 FrontGLAZE™ framing is designed to complement other AWS framing and doors.
Product Details
- Product
- Elevate | Series 406 | Single Glazed 102mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Studio SnellArchitects
ArdelArchitects
J Mammone ArchitectureArchitects
Chan ArchitectureArchitects
Hindley & CoArchitects
DX ArchitectsArchitects
BANHAM ArchitectsArchitects
Shane Marsh ArchitectArchitects
Kister ArchitectsArchitects
Brcar Morony ArchitectureArchitects
Robert Harwood ArchitectsArchitects
Freckle ArchitectureArchitects
Woods BagotArchitects
RobertsonCollectifArchitects
Taylor KnightsArchitects
Create ArchitectureArchitects
AO Design StudioArchitects
Habitat Studio ArchitectsArchitects
Cunningham Custom HomesDesign & Build
APC BuildBuilders
Venn ConstructionsBuilders
Distinct InnovationsDesign & Build
Escea Fireplace CompanyManufacturers and Suppliers
Glow DesignBuilding Designers
KarmatectureBuilding Designers
Millboard DeckingManufacturers and Suppliers
Alex Urena Design StudioBuilding Designers
Studio UrboBuilding Designers
Walters MacriPhotographers
Design by JonesInterior Designers
Centor®Manufacturers and Suppliers
Design by ADBuilding Designers
Gold Leaf ConstructionsBuilders
Reitsma & AssociatesBuilding Designers
Seidler GroupDesign & Build
Alberse HomesBuilders
Nadine K DesignBuilding Designers
Series 406 FrontGLAZE™ framing is designed to complement other AWS framing and doors.
- Specs
- High water resistance can be achieved successfully tested at 600Pa water resistance.
- Large variety of transom and mullion alternatives, Series 406 will also accept many of the Series 400 CentreGLAZE™ frame accessories including doors, sub-frames and thresholds.
- Industry standard glazing pocket with true captive glazing wedge.

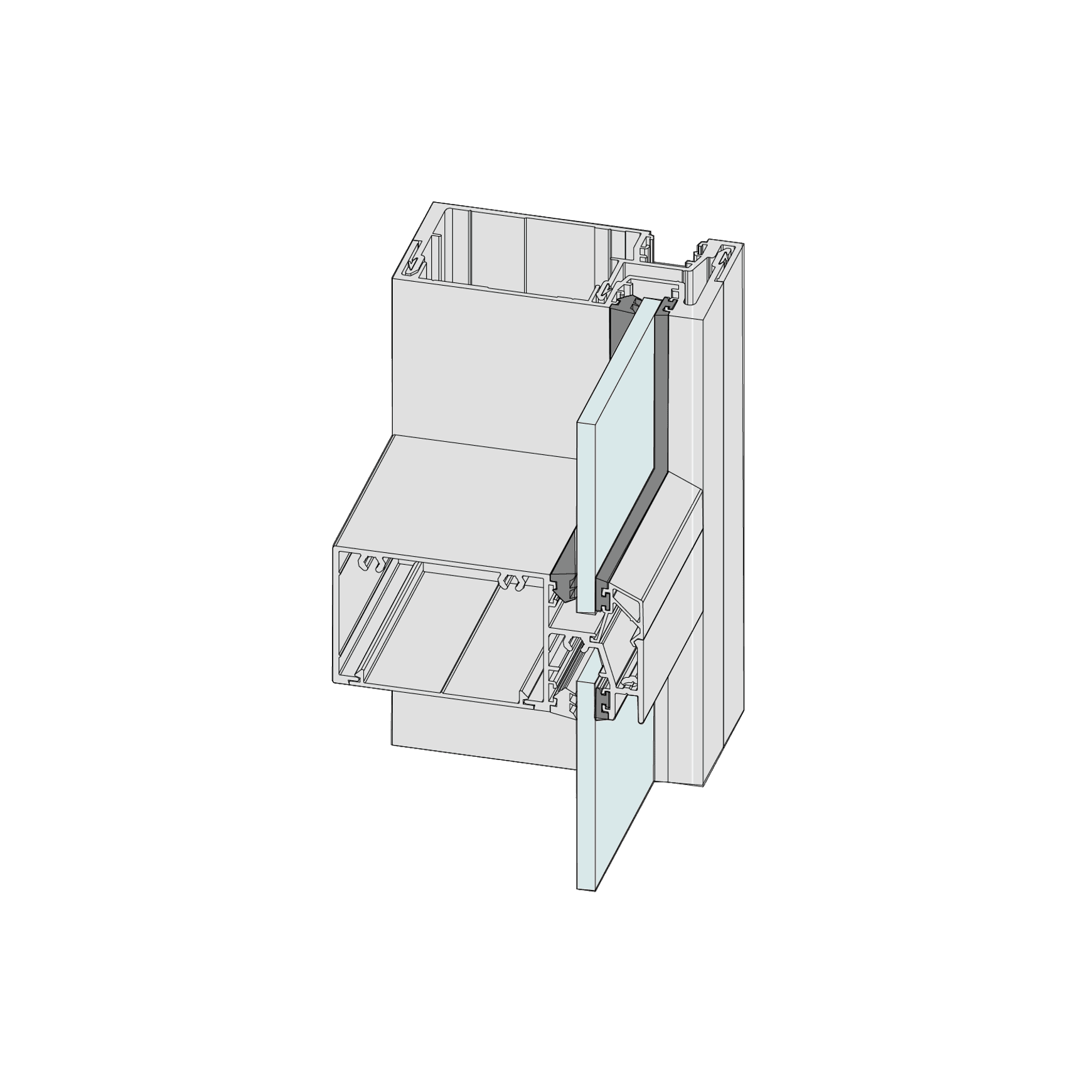

- Three mullion designs allow frames to be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing.
- Two midrail sizes (50mm and 125mm).
- Large variety of glazing and beading options.
- Built-in drip groove on transoms to encourage water to leave framing face.
- Sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.
- Maximum Panel Height* Various
- Maximum Panel Width* Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.25 - 0.74
- Uw Range 4.5 - 6.1
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
Elevate | Series 406 | Single Glazed 102mm Framing
The Elevate | Series 406 | Single Glazed 102mm Framing is supplied by Architectural Window Systems. It is also on their website, and you can browse every product Architectural Window Systems lists on ArchiPro.
Architectural Window Systems does not publish a price for the Elevate | Series 406 | Single Glazed 102mm Framing on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Elevate | Commercial Framing range from Architectural Window Systems, where you can see every product in the range together.

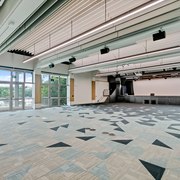

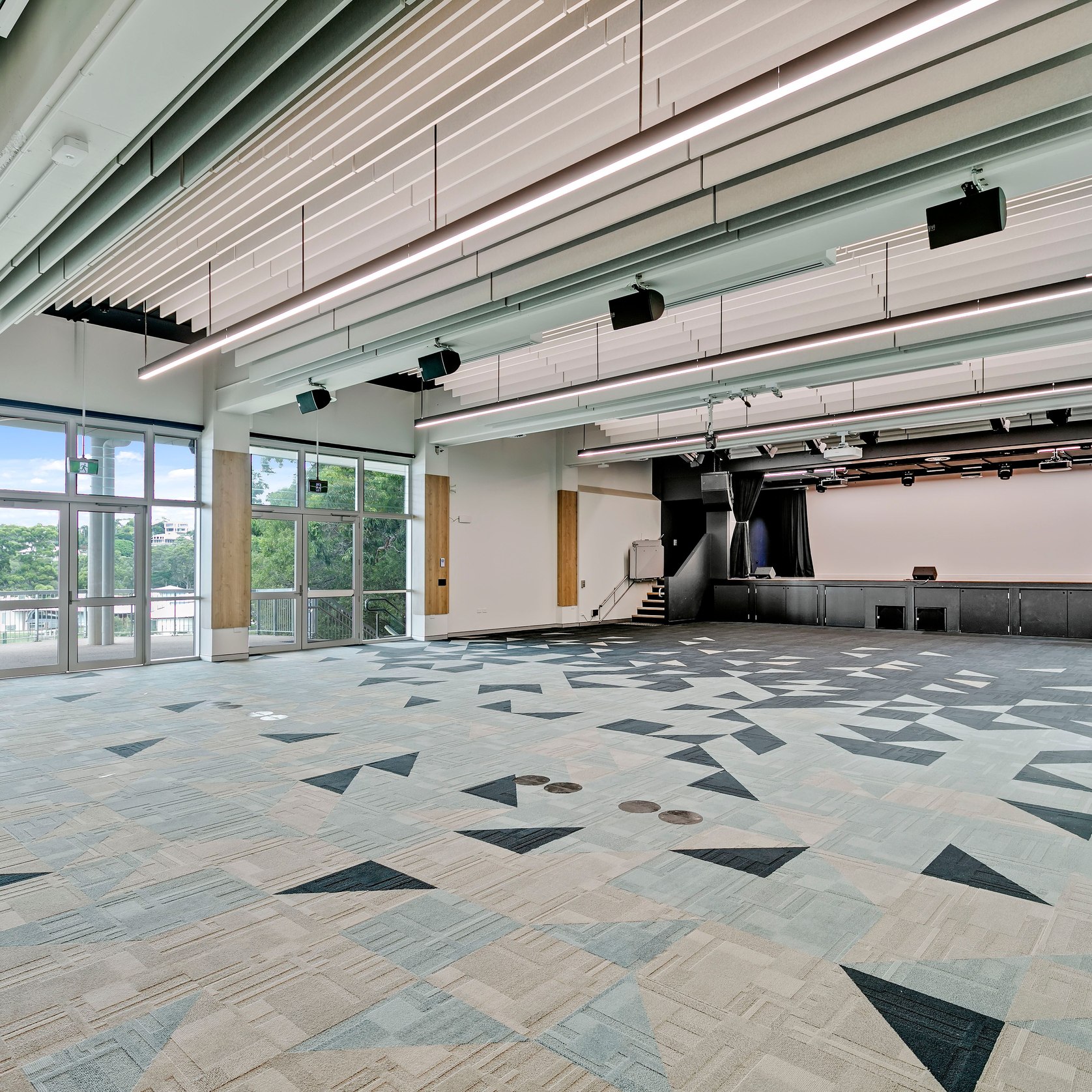

Yes. It has been specified in projects on ArchiPro, including Immanuel Lutheran College by Architectural Window Systems. See how it was used in a finished space.
