Elevate | Series 424 | Double Glazed 102mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 391.1K profile views
- 36 saves

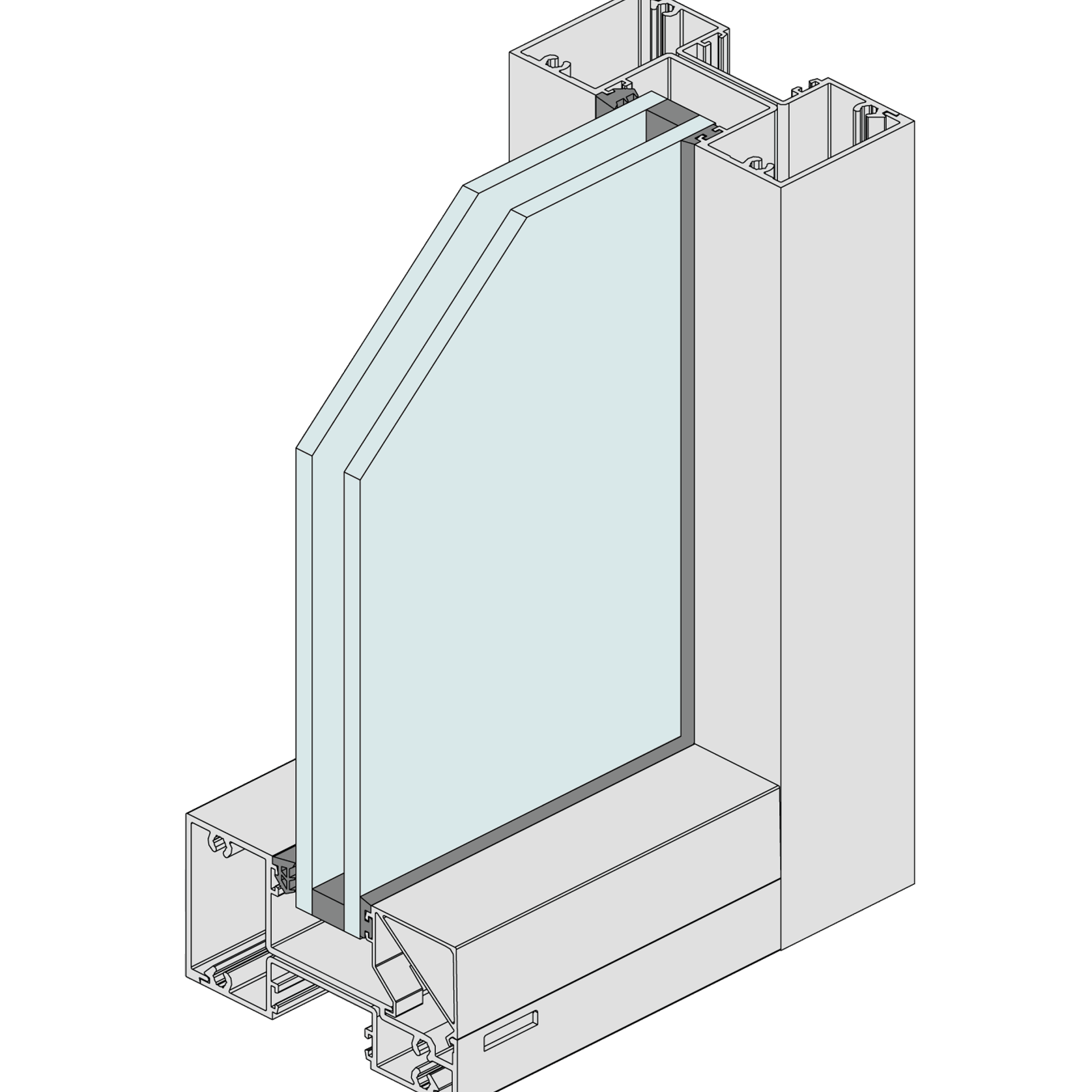

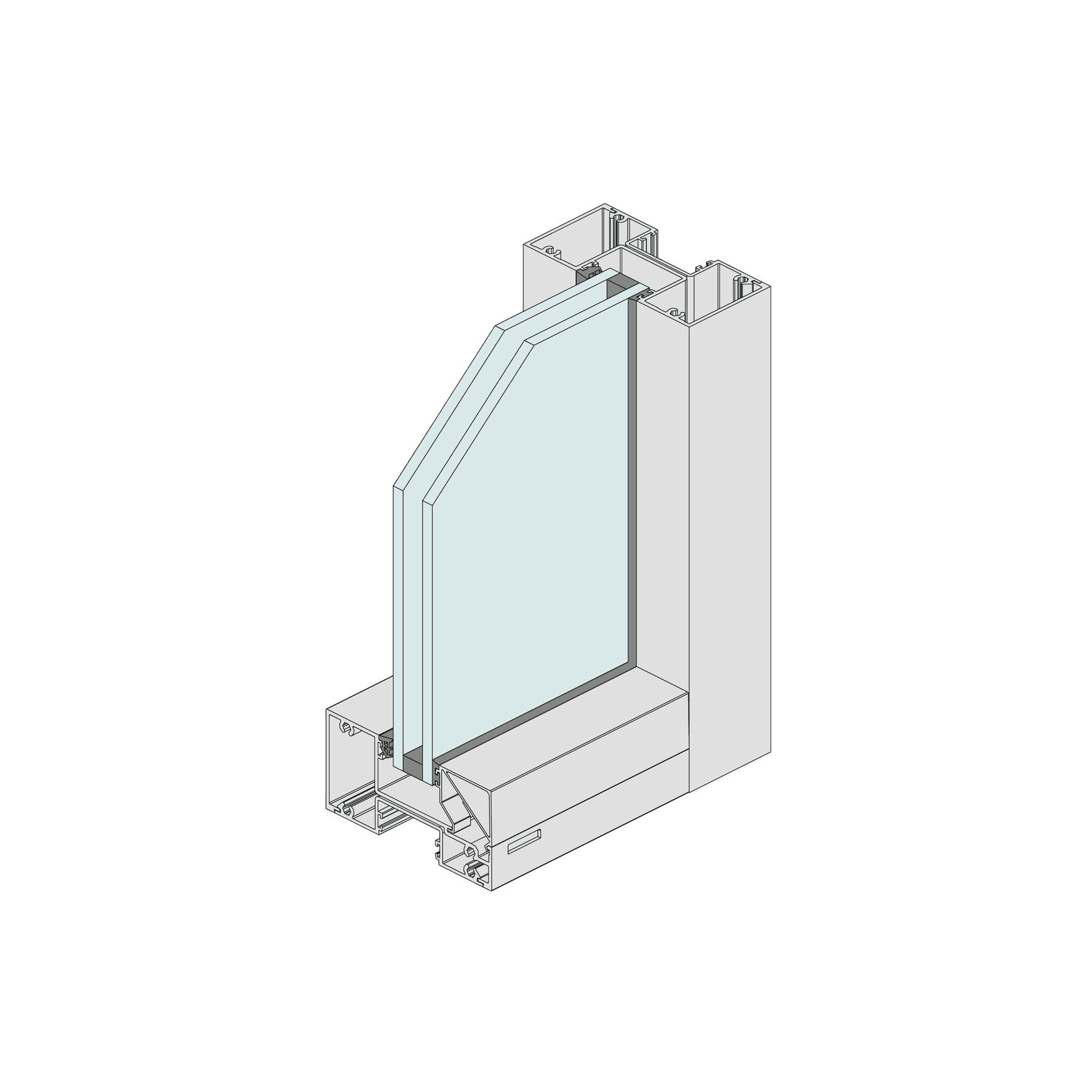

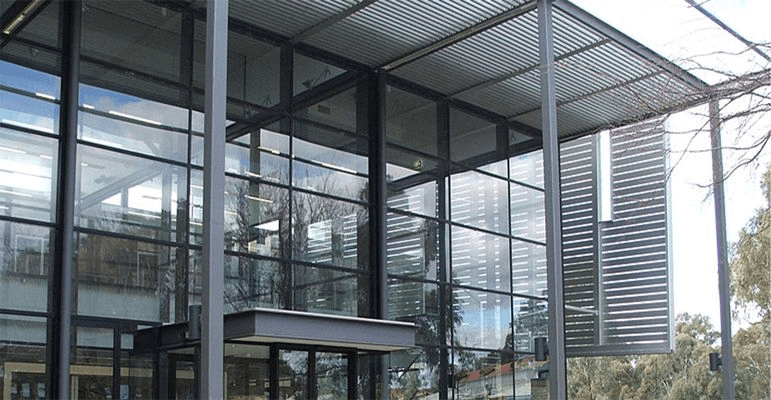

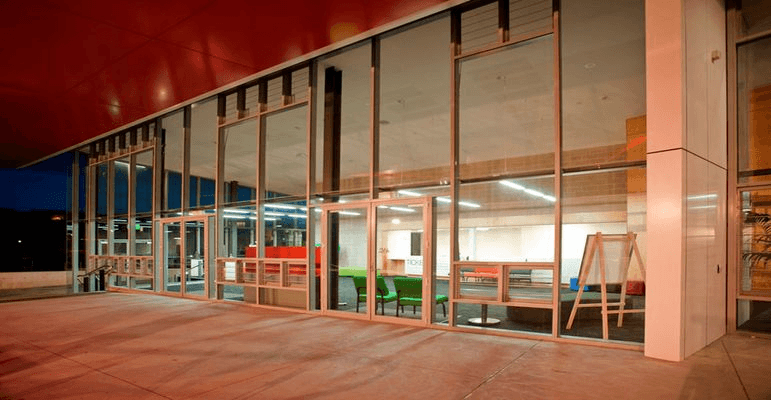

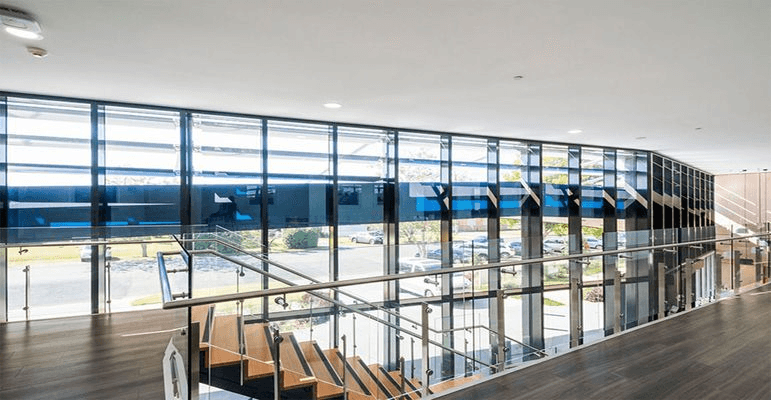

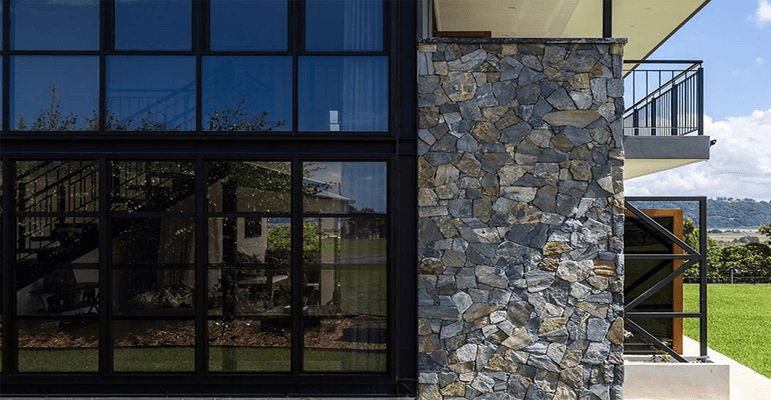

Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
Product Details
- Product
- Elevate | Series 424 | Double Glazed 102mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Product specified by
Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
- Specs
- The 28mm deep glazing pocket is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing tolerance).
- This deep glazing pocket provides a 12mm bite as required by the IGU manufacturers and ensures compliance with glass warranties.
- Reinforced tall glazing bead at sill tolerate high wind loads.
- True captive glazing wedge allows reglazing from inside - ideal in elevated applications.
- The captive wedge also offers increased security.
- Glazing wedges are recessed into the framing for a clean aesthetic.
- Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
- Sub-head and two piece sub-jambs.
- Numerous door thresholds including weather resisting thresholds for external and internal swing doors.
- Designed for use with Series 50, 51 and 52 commercial doors.
- Compatible with Commercial and Architectural Series systems.
- Accepts awning and Casement sashes.
- Maximum Panel Height* Various
- Maximum Panel Width* Various
- Maximum Glass Thickness≤ 28mm
- SHGC Range 0.17 - 0.63
- Uw Range 2.6 - 3.6
