Elevate | Series 607 | Single Glazed 150mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 391.6K profile views
- 36 saves
Series 607 FaceLINE™ framing system has been designed to complement Series 606 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors
Product Details
- Product
- Elevate | Series 607 | Single Glazed 150mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Studio SnellArchitects
ArdelArchitects
J Mammone ArchitectureArchitects
Chan ArchitectureArchitects
Hindley & CoArchitects
DX ArchitectsArchitects
BANHAM ArchitectsArchitects
Shane Marsh ArchitectArchitects
Kister ArchitectsArchitects
Brcar Morony ArchitectureArchitects
Robert Harwood ArchitectsArchitects
Freckle ArchitectureArchitects
Woods BagotArchitects
RobertsonCollectifArchitects
Taylor KnightsArchitects
Create ArchitectureArchitects
AO Design StudioArchitects
Habitat Studio ArchitectsArchitects
Cunningham Custom HomesDesign & Build
APC BuildBuilders
Venn ConstructionsBuilders
Distinct InnovationsDesign & Build
Escea Fireplace CompanyManufacturers and Suppliers
Glow DesignBuilding Designers
KarmatectureBuilding Designers
Millboard DeckingManufacturers and Suppliers
Alex Urena Design StudioBuilding Designers
Studio UrboBuilding Designers
Walters MacriPhotographers
Design by JonesInterior Designers
Centor®Manufacturers and Suppliers
Design by ADBuilding Designers
Gold Leaf ConstructionsBuilders
Reitsma & AssociatesBuilding Designers
Seidler GroupDesign & Build
Alberse HomesBuilders
Nadine K DesignBuilding Designers
Series 607 FaceLINE™ framing system has been designed to complement Series 606 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors
- Specs
- Glass close to the external face reduces the potential of dust build-up on transom ledges.
- Interlocking split mullions to accommodate expansion and contraction.

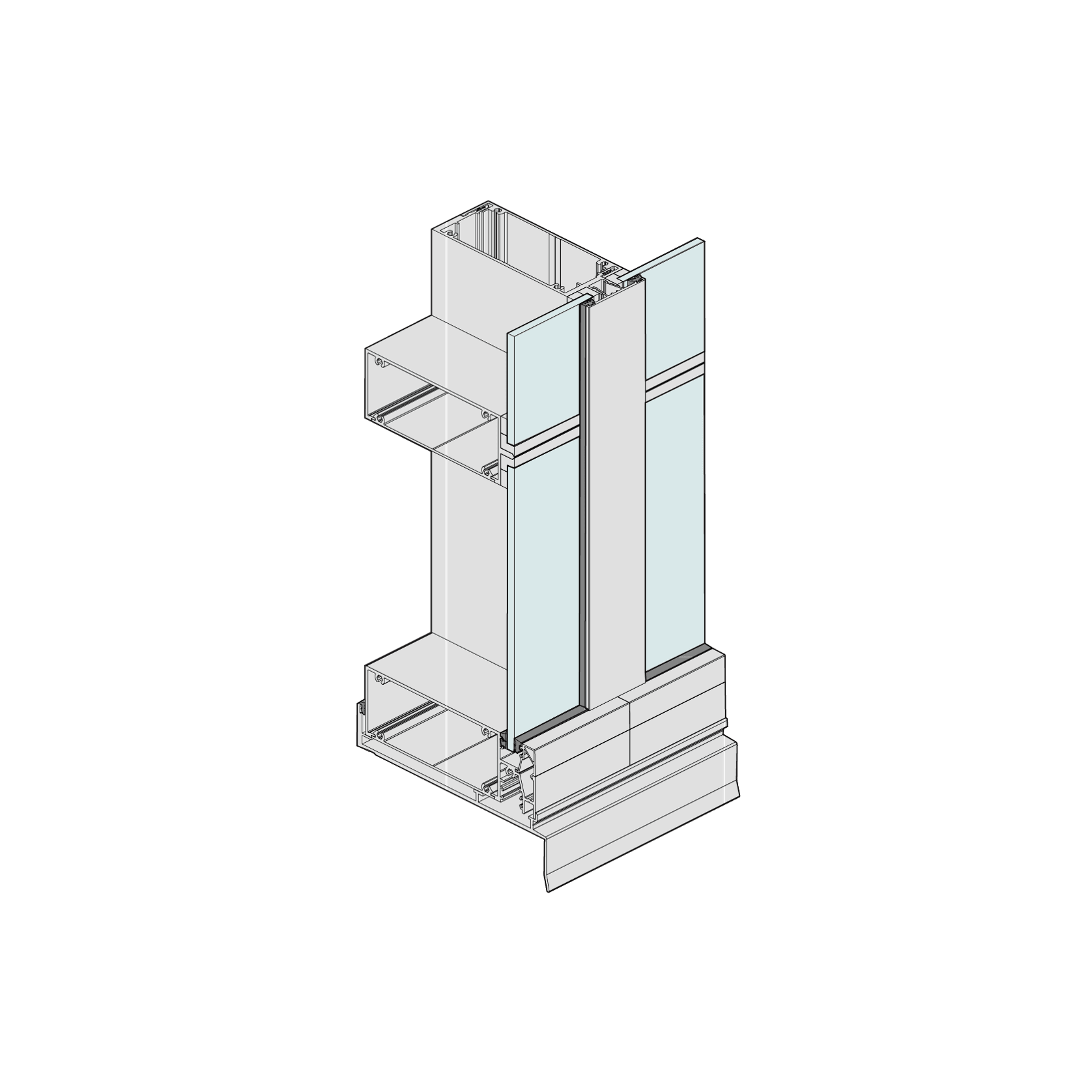

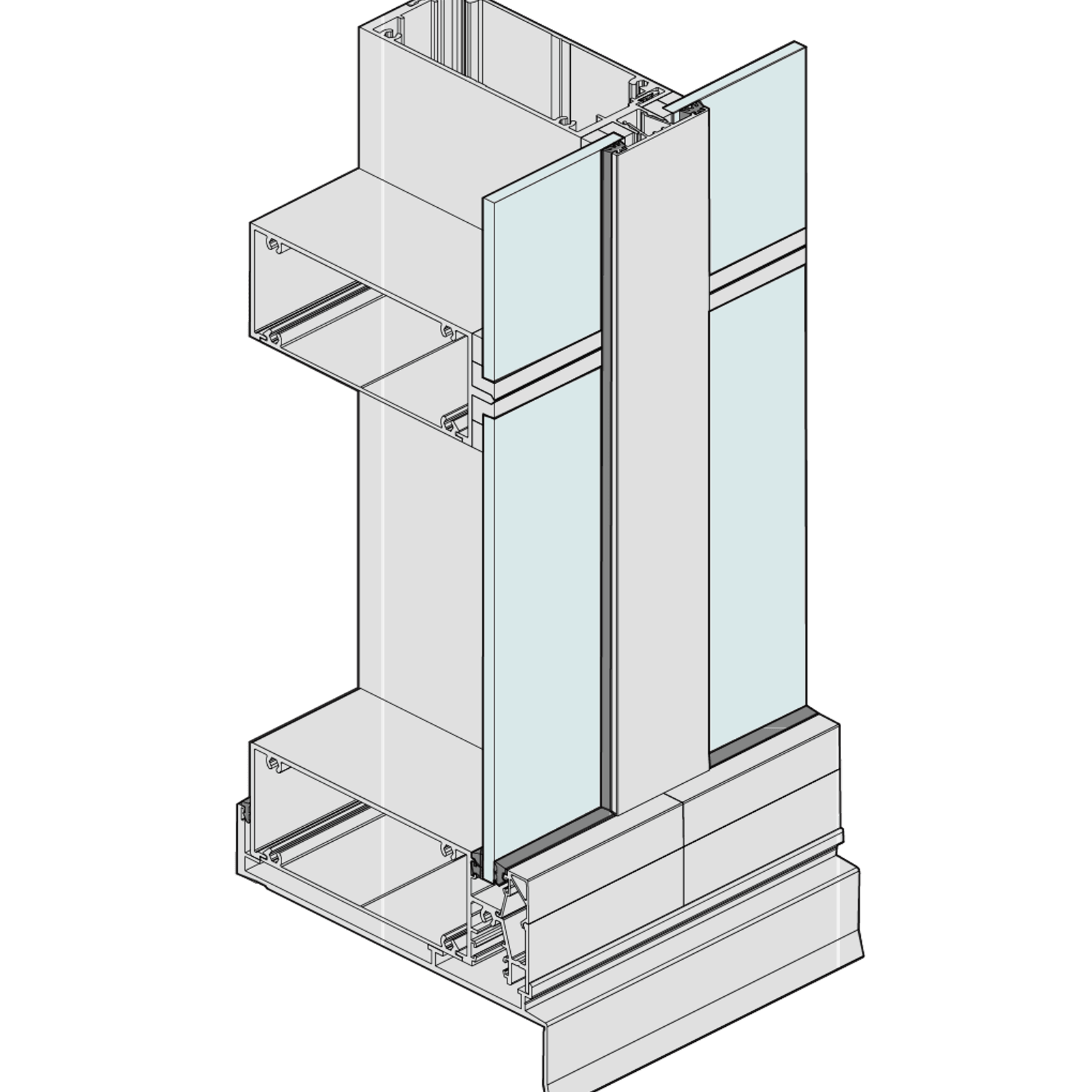

- The 150 x 50mm framing system has a variety of transom and mullion alternatives.
- Will accept glass from 6 to 10.38mm in thickness.
- Full perimeter frame allows this system to be fitted into sub-head, sub-sill and sub-jambs if required.
- Four snap-on cover options.
- Structurally glazed mullions or transoms are available.
- Designed for one- or two-storey shopfronts, vertical should not exceed the stock length. This is not a curtain wall system.
- Maximum Panel Height *Various
- Maximum Panel Width *Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.27 - 0.76
- Uw Range 4.2 - 6
