Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Black 37020419

Wetherill Park, Australia

994.2K profile views
51 saves

Dorma TS73 EN1-4 Door Closer
37020419

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Ideal for commercial applications
Non-handed closer suited to internal doors including fire doors.

Tags

overhead mount modern automatic adjustable delay action

Product Details

Product: Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Black 37020419
Category: Door Closers
Sold by: Keeler Hardware
Range: Dormakaba

Keeler Hardware is specified by

(29) Professionals

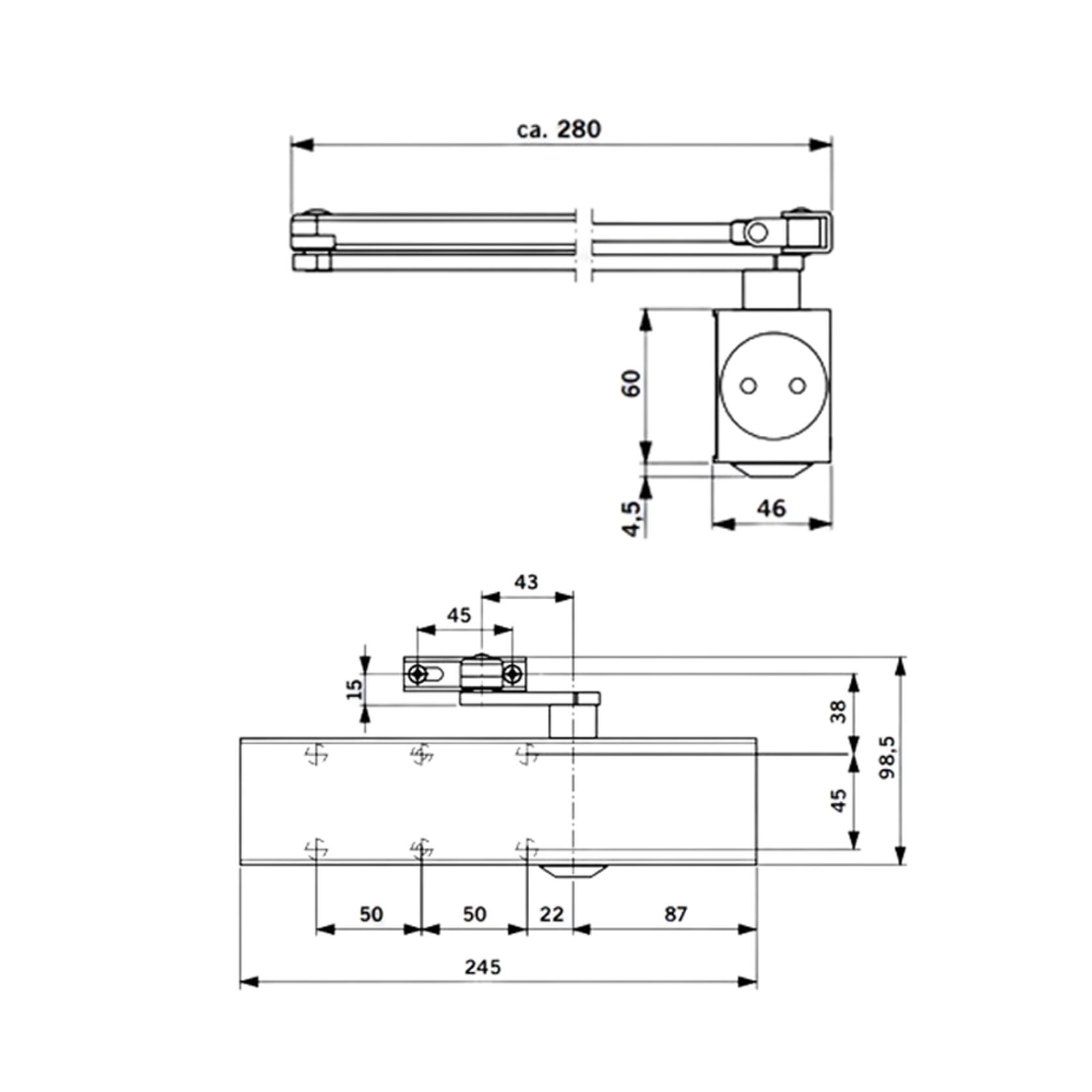

Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Black 37020419 dimensions

Visit site

Dorma TS73 EN1-4 Door Closer 37020419 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened.

Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Ideal for commercial applications
Non-handed closer suited to internal doors including fire doors.

Specs

Features:

Overhead surface mounted door closer
Power adjustable with a screw, closing speed (180 degrees - 15 degrees), and latching speed (15 degrees - 0 degrees) adjustable with separate valves with final adjustment by the standard arm.
Adjustable latching action by valve
Adjustable delay action
Includes parallel arm bracket
Parallel arm mounting doors up to 950mm
Standard arm assembly

Specifications:

Closing Force: EN1-4
Backcheck: Self-regulating or adjustable by valve
Standard Doors: Up to 1100mm
Length: 245mm
Width: 46mm
Height: 60mm
Weight: 1.7kg
Finish: Black

Protection:

Fire Rated: Approved to AS1905 Part 1 Fire Resistant Doors. Tested to EN1154
